Description
TV-INDUSTRIES 30M LONG STEEL PRO MEASURING TAPE “GLASGOW”
| REFERENCE | SIZE BLADE | DIAMETER | WEIGHT | EAN-CODE | HS-CODE |
|---|---|---|---|---|---|
| 314.406YFR | 20mx13mm. | 100mm. | 400 gr. | 8746121056042 | 9017801000 |
| 314.408YFR | 30mx13mm. | 120mm. | 580 gr. | 8714612056066 | 9017801000 |
TV-INDUSTRIES FEATURES & SPECIFICATIONS:
CE/MID approved, 2014/32/EU, Art. 17, Accuracy Class II
Size blade: length: 30 meter / Width: 13mm
Material blade: ca. 0,15mm thick yellow colored Steel
Tensile strength steel: 50N/mm²
Single-sided black colored metric graduation
Graduation starts at joint end of the hook
Red colored ABS round case with black ABS anti-slip grip
Compact black colored ABS rewind handle
Large metal end hook with 2 rivets
Manufactured in: PRC
Individual packing: Cardboard hanging-card (12,5×16,5 cm.)
Packing material: Cardboard (40 gr.)
Needed space on retail rack: ca 14×3,5×18,5 cm.
TV-INDUSTRIES LOGISTIC INFORMATION:
Size master carton: 40x27x16 cm / Gr. Weight: 12 Kg.
Size inner carton: 25x13x14 cm / Gr. weight: 3,5 Kg.
Pieces per inner carton: 6
Pieces per master carton: 18
Pieces per euro pallet: 450
Pieces per 20″ container: 28.900
TV-INDUSTRIES RECOMMENDATIONS:
* Hold the tape measure firmly and retract the blade slowly
* Regularly inspect the blade for cracks, fading numbers or bent edges
* Clean the frame, blade and hook on regular base
* Store in a dry area at room temperature
Maximum tolerance according class II accuracy, 2014/32/EU (MID) :
10m= ±2,3mm // 20m= ±4,3mm // 30m=±6,3mm // 50m= ±10,3mm
================================================
MOQ & DELIVERY TIME FOR PRIVATE LABEL: ON REQUEST
================================================
Imported into the EU by:
ToolVizion International BV
Steenplaetsstraat 6
2288 AA Rijswijk, The Netherlands
info@toolvizion.com
314.408YFR

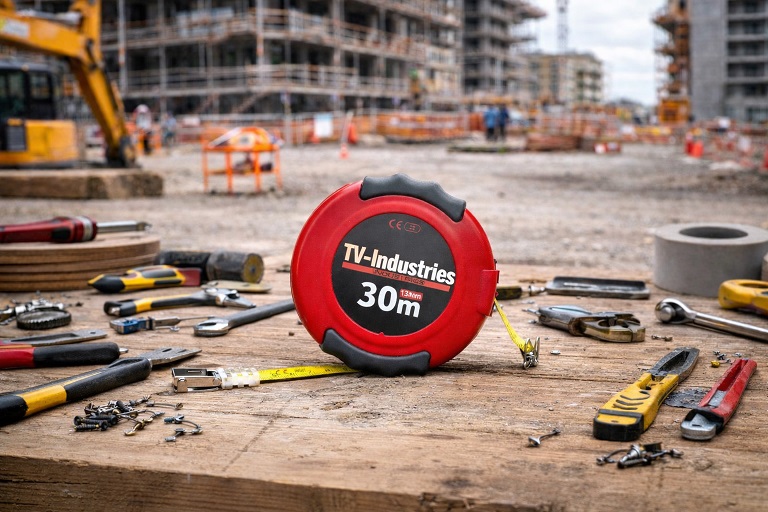

TV-INDUSTRIES 30M LONG STEEL PRO MEASURING TAPE “GLASGOW”
* Produced according Class, Art. 17 of Directive 2014/32/EU
* Covers long distance measuring up to 30 meters
* Ensures precise measurements over extended ranges
* Minimal stretching and clear reading
* Optimum measuring comfort and high durability
* The high performance rewind handle retracts the blade fast & safe
* The metal end-hook can be attached to various surfaces
* Can be used in wide range of applications
* Professional appearance and environmental resistance
* Will increase the productivity at the jobsite
* For professional and DIY workers

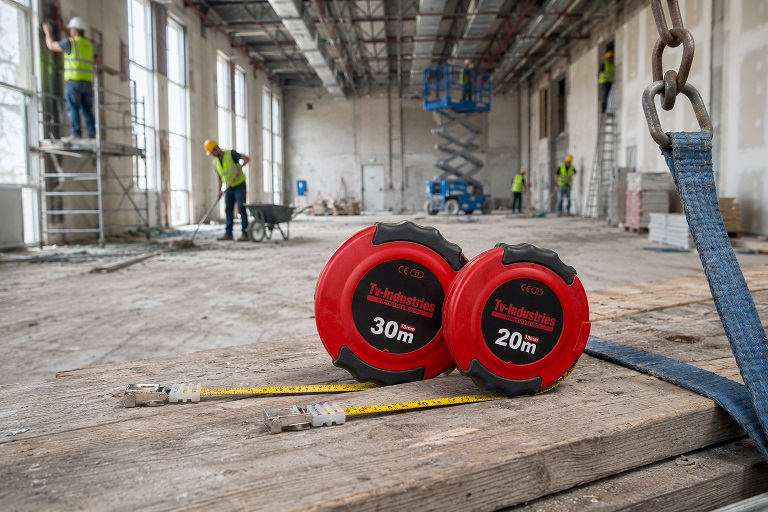

+ Available in 20m version: 314.406YFR – Toolvizion
TV-Industries long steel tapes are reliable, durable, and precise tools to measure large areas or distances. Their ability to maintain accuracy, withstand harsh conditions and user-friendly features make them an essential tool for construction, surveying and other demanding applications.
