Description
TV-INDUSTRIES 20M LONG FIBERGLASS MEASURING TAPE “WALSALL”
| REFERENCE | SIZE BLADE | DIAMETER | WEIGHT | EAN-CODE | HS-CODE |
|---|---|---|---|---|---|
| 314.060YFR | 10mx13mm. | 100mm. | 190 gr. | 8714612041666 | 9017801000 |
| 314.062YFR | 20mx13mm. | 130mm. | 300 gr. | 8714612041680 | 9017801000 |
| 314.064YFR | 30mx14mm. | 160mm. | 420 gr. | 8714612041697 | 9017801000 |
TV-INDUSTRIES FEATURES & SPECIFICATIONS:
CE/MID approved, 2014/32/EU, Art. 17, Accuracy Class III
Size blade: 20 meter / Width: 13mm
Material blade: ca. 0,42mm thick white colored Fiberglass
Graduation starts at joint end joint end of the ring
Tensile strength Fiberglass: 10N/mm²
Black colored double sided metric graduation
Black-yellow colored ABS round case
Black colored ABS/Metal ring/hook
Compact metal rewind handle
Manufactured in: PRC

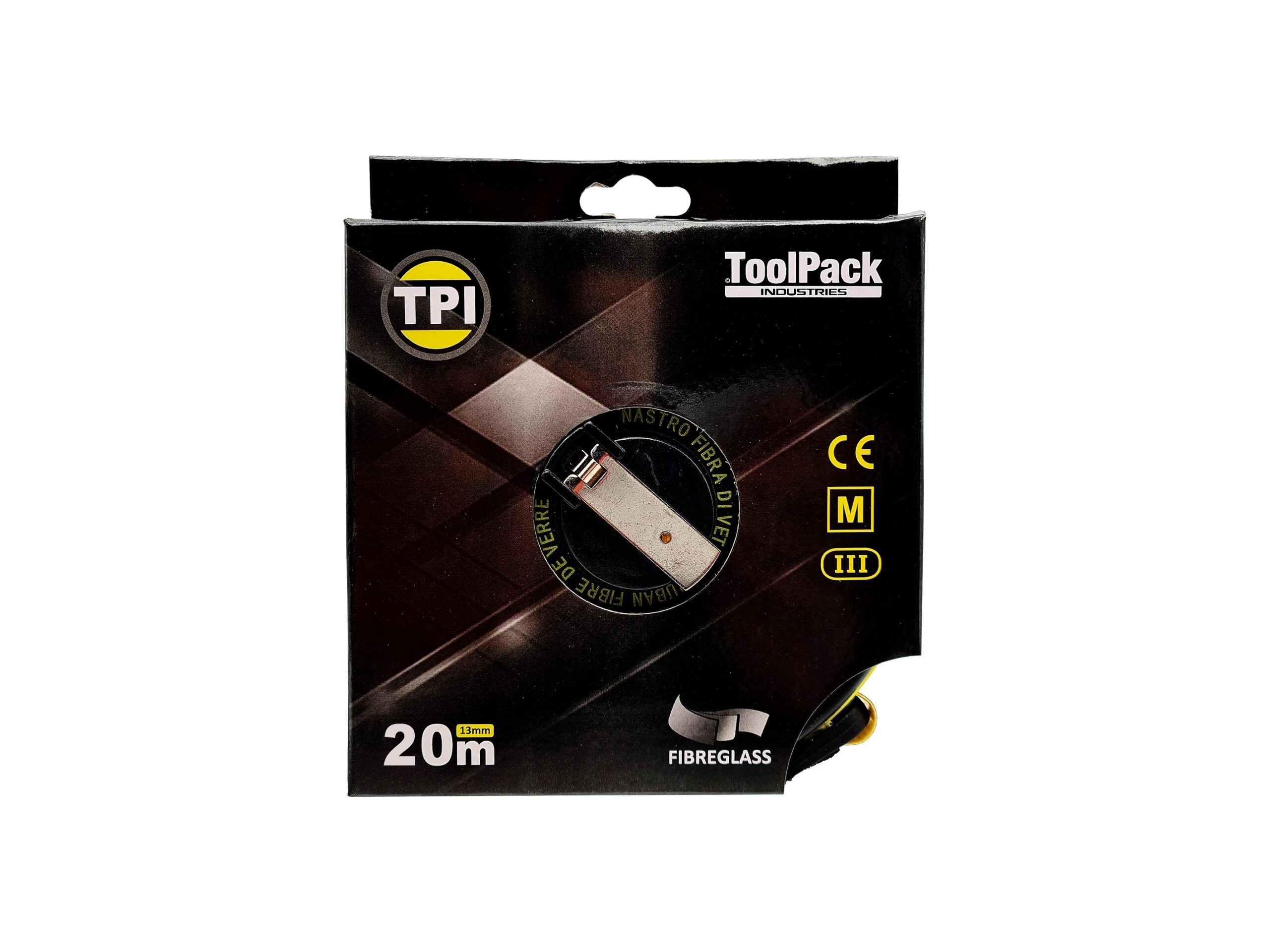

Individual packing: Cardboard hanging-box
Packing material: Cardboard (25 gr.)
Needed space on retail rack:
TV-INDUSTRIES LOGISTIC INFORMATION:
Size master carton: 48x33x36 cm. / Gr. Weight: 20Kg.
Size inner carton: 16x15x12 cm. / Gr. Weight: 1,5 Kg.
Pieces per inner carton: 5
Pieces per master carton: 60
Pieces per euro pallet: 1.200
Pieces per 20″ container: 29.200
TV-INDUSTRIES RECOMMENDATIONS:
* Anchor the tape and pull it straight and tight
* Hold the tape measure firmly and retract the blade slowly
* Regularly inspect the tape on kinks and bends
* Clean the case, tape and hook on regular base
* Store in a dry area at room temperature
Maximum tolerance according class III accuracy, 2014/32/EU (MID) :
10m= ±4,6mm // 20m= ±8,6mm // 30m=±12,6mm // 50m= ±20,6mm
================================================
MOQ & DELIVERY TIME FOR PRIVATE LABEL: ON REQUEST
================================================
Imported into the EU by:
ToolVizion International BV
Steenplaetsstraat 6
2288 AA Rijswijk, The Netherlands
info@toolvizion.com
314.062YFR
TV-INDUSTRIES 20M FIBERGLASS LONG TAPE “WALSALL”
* Produced according Class III, Art. 17 of Directive 2014/32/EU
* Suitable for non-conductive long distance measuring up to 20 meters
* Rust-, corrosion- and tear resistant
* Can be twisted around obstructions without breaking
* Easy to be carried from location to location
* Optimum measuring comfort and practical to use
* Fast, safe and easy blade retraction
* End-hook can be easily attached to various objects
* Highly durable and clear reading
* Will increases the productivity at the jobsite
* For professional and DIY workers
+ Available in the sizes:
– 10M: 314.060YFR – Toolvizion
– 30M: 314.064YFR – Toolvizion
TV-Industries long fiberglass measuring tapes are combining durability, safety and convenience. They are lightweight and non-conductive. The weather-resistant properties are making them indispensable for accurate and reliable long-distance measurements in various environments.
