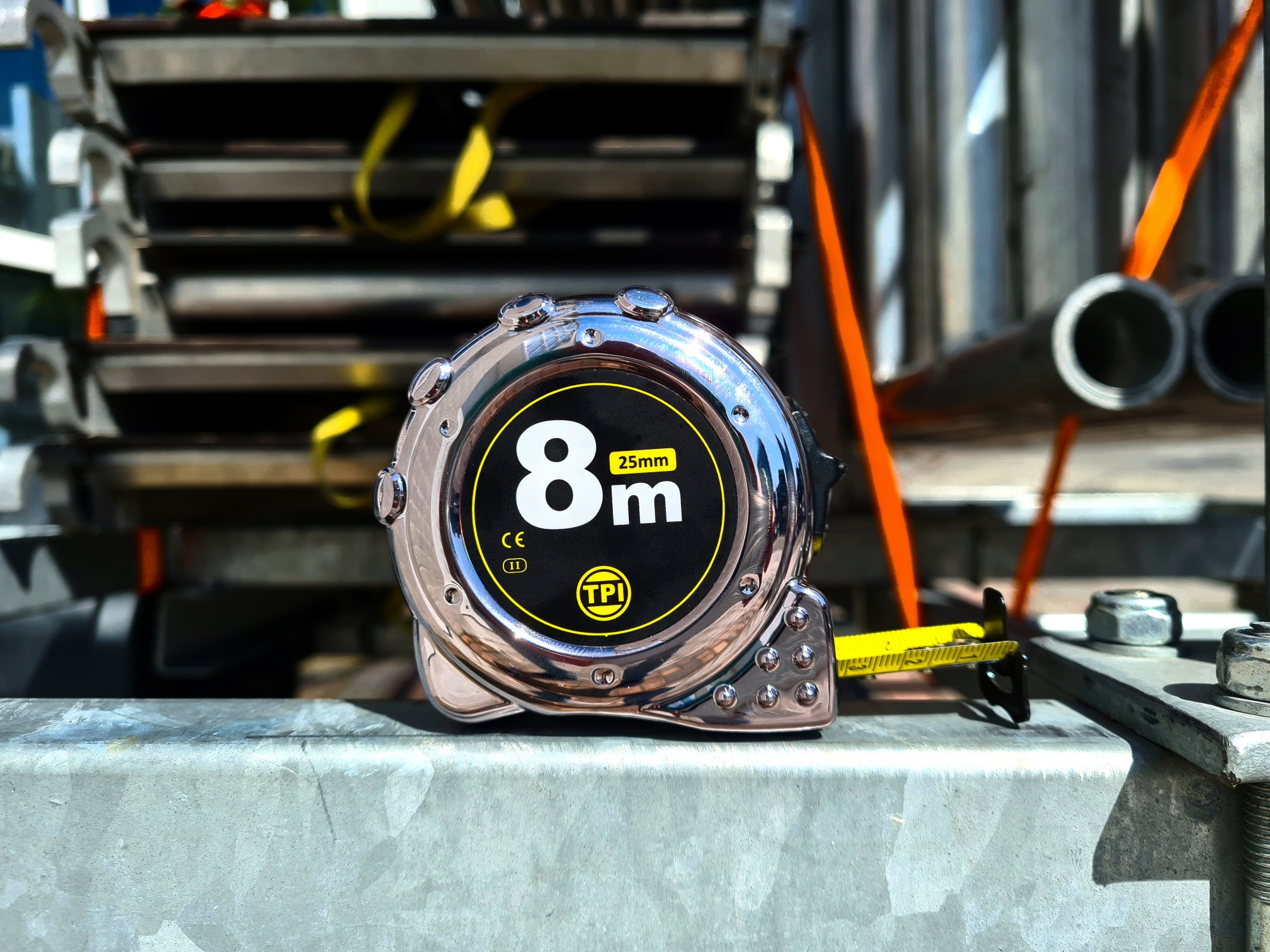

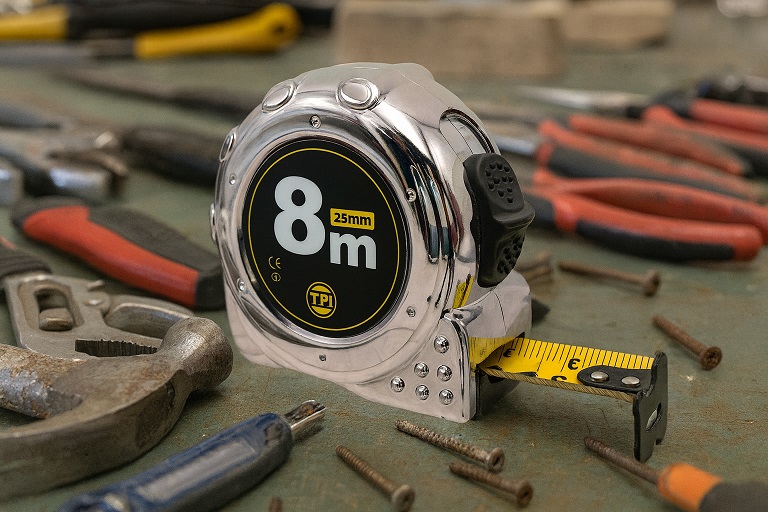

TV-INDUSTRIES PRO 8MX25MM COMPACT MEASURING TAPE “CAMBRIDGE”
| REFERENCE | SIZE BLADE | DIAMETER | WIDTH | WEIGHT | EAN-CODE | HS-CODE |
|---|---|---|---|---|---|---|
| 310.890Y | 3mx16mm. | 55mm. | 25mm. | 100 gr. | 8714612063002 | 9017801000 |
| 310.892Y | 5mx19mm. | 65mm. | 30mm. | 200 gr. | 8714612063019 | 9017801000 |
| 310.894Y | 8mx25mm. | 75mm. | 35mm | 375 gr. | 8714612063026 | 9017801000 |
| 310.896Y | 10mx25mm. | 80 mm. | 35 mm. | 470 gr. | 8714612063033 | 9017801000 |
TV-INDUSTRIES FEATURES & SPECIFICATIONS:
CE/MID approved, 2014/32/EU, Art. 17, Accuracy Class II
ToolVizion EU Type examination certificate available upon request
Size blade size: length: 8 meter / Width: 25mm
Material blade: ca. 0,12mm thick yellow colored steel
Black colored metric horizontal graduation on frontside blade
Black colored metric vertical graduation on backside blade
Black metal end-hook with 3 rivets & backside belt clip
Chrome colored ABS case with added UV-coating
ABS black colored ribbed thumb-lock / shock absorbing devise
Length blade stand-out: Ca. 220cm
Manufactured in: PRC (China)
Packed: per 6 pcs. in box
Material packing : Cardboard
TV-INDUSTRIES LOGISTIC INFORMATION:
Size master carton: 35x30x20 cm. / Gr. Weight: 19 Kg.
Size inner carton: 17x14x9 cm. / Gr. Weight: 2 Kg.
Pieces per inner carton: 6
Pieces per master carton: 48
Pieces per euro pallet: 2.016
Pieces per 20″ container: 68.000
TV-INDUSTRIES RECOMMENDATIONS:
* Hold the tape measure firmly and retract the blade slowly
* Regularly inspect the blade for cracks or fading numbers
* Clean the case, blade and hook on regular base
* Store in a dry area at room temperature
* Dispose responsibility: follow local recycling/waste guidelines
Maximum tolerance according class II accuracy, 2014/32/EU (MID) :
1m= ±2,3mm // 2m= ±3,6mm // 3m=±4,9mm
5m= ±7,5mm // 8m= ±11,1mm // 10m=±13,5mm
================================================
MOQ & DELIVERY TIME FOR PRIVATE LABEL: ON REQUEST
================================================
Imported into the EU by:
ToolVizion International BV
Steenplaetsstraat 6
2288 AA Rijswijk, The Netherlands
info@toolvizion.com
310.894Y
TV-INDUSTRIES PRO 8MX25MM COMPACT MEASURING TAPE “CAMBRIDGE”
* Produced according Class II, Art. 17 of Directive 2014/32/EU
* Optimum clear vertical and horizontal reading
* Ensures precise measurements with minimal deviation
* Ergonomic design, provides a comfortable and non-slip grip
* Smooth and safe blade retraction & high dropping resistance
* Easy to carry and store, simply to attach to most (working) pants
* Easy to use / Will increase the productivity at the jobsite
* For Professional and DIY workers / Suitable for most industries & environments
+ Available in the sizes: 3mx16mm: 310.890Y – Toolvizion
+ 5mx19mm: 310.892Y – Toolvizion, 10mx25mm: 310.896Y – Toolvizion
TV-Industries PRO measuring tapes are combining accuracy, durability and ease of use, making them a highly indispensable measuring tool. Their reliability and efficiency ensure precise measurements and enhance the quality of work across a wide range of tasks.
