310.248Y

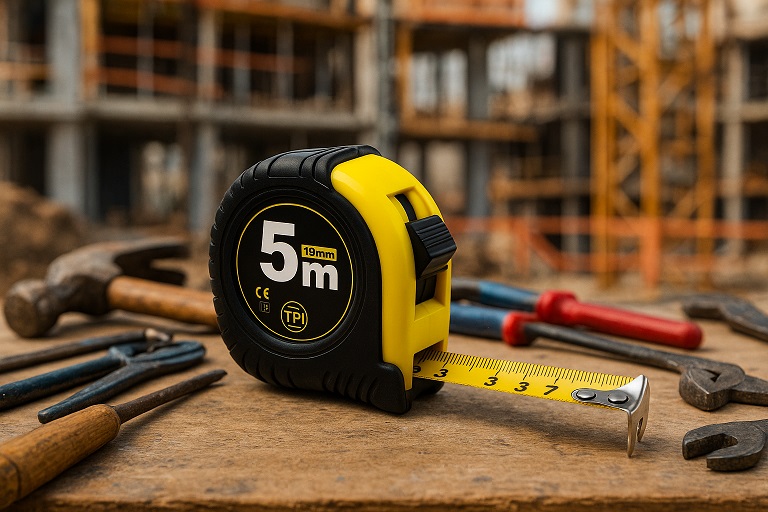

TPI; COMPACT MEASURING TAPE “OHIO”
* Centi- & millimeter precision measuring according accuracy Class II,
   as in art. 17 of Directive 2014/32/EU (CE/MID)
* One time measuring up to 5 meter
* Fits easy in most hands and pockets
* Optimum measuring comfort and highly durable
* Long blade stand out and high dropping resistance

* Easy to attach to most (working) pants or belts
* Suitable for professional and DIY-workers
* Increases the productivity on the job site
* Perfect to carry & clip on TP tool holder 360.074 – Toolvizion

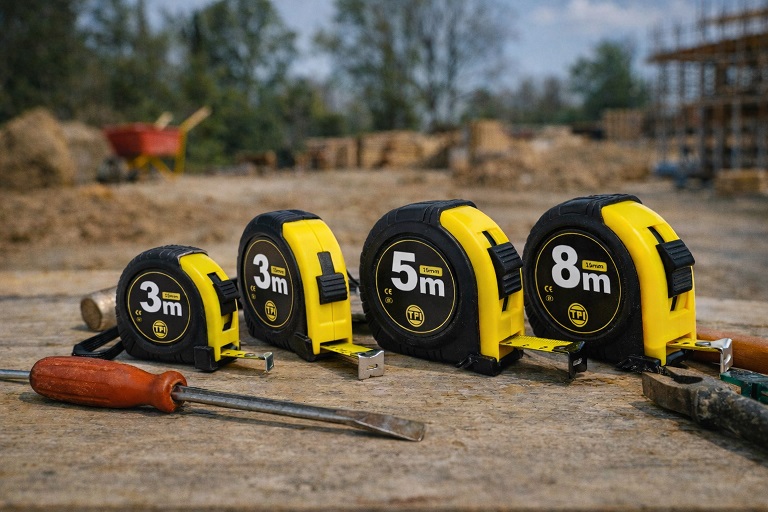

TPI; 5MX19MM COMPACT MEASURING TAPE “OHIO” SERIES
REFERENCE  SIZE BLADE   DIAMETER  WIDTH  WEIGHT   EAN-CODE              HS-CODE
310.244Y     3mx16mm     55mm         30mm    110 gr.     8714612047316     9017801000
310.248Y     5mx19mm    65mm         32mm    180 gr.     8714612047323     9017801000
310.249Y     5mx25mm     65mm         40mm    245 gr.     8714612059364     9017801000
310.252Y     8mx25mm     75mm         40mm    355 gr.     8714612047330     9017801000
FEATURES & SPECIFICATIONS:
CE/MID approved, 2014/32/EU, Art. 17, Accuracy Class II
Blade size : length: 5 meter / Width: 19mm
Blade: yellow colored steel
Single sided black colored graduation
Shock absorbing blade devise
Metal end-hook with 2 metal rivets
High impact yellow colored ABS case
Added black colored rubber anti-slip & shock shield
ABS ribbed thumb-lock
Metal belt clip & polyester wrist strap
ToolVizion EU Type examination certificate available upon request
Manufactured in: PRC
Individual packing: in neutral cardboard box

Packed :
310.244Y : Inner Carton: 12 pieces  / Master Carton: 120 pieces
310.248Y : Inner Carton: 12 pieces / Master Carton: 120 pieces
Master carton; Size: 43x26x33cm  / Gr. Weight: 20 Kg.
310.249Y : Inner Carton: 6 pieces  / Master Carton: 60 pieces
310.250Y : Inner Carton: 6 pieces  / Master Carton: 60 pieces

MOQ AND DELIVERY TIME FOR PRIVATE LABEL  : ON REQUEST
